RGB AOI Tester Automatic Inspection Machine Standard SMEMA interface

Product Categories
Dongguan MENTO Intelligent Technology Co., Ltd.
Contact Now

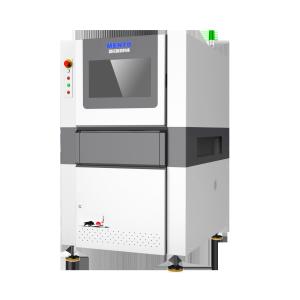

RGB AOI Tester Automatic Inspection Machine Standard SMEMA interface

  • 1
  • 2

Brand Name : MENTO

Model Number : M2020MS

Certification : FCC.ROHS,CCC

Place of Origin : DONGGUAN

MOQ : 3

Supply Ability : 10pcs+20 work days

Delivery Time : 20 work days

Packaging Details : W1000mmxD1380mmxH1600mm(without foot 100±20mm)

Dimensions : 1200mm x 800mm x 1500mm

Model : Tester

Weight : 500kg

Application : PCB Inspection

Interface : Ethernet

Camera Type : High-resolution CCD

Type : Automated Optical Inspection

Inspection Speed : Up to 60 cm²/s

Software : AOI software

Power Supply : AC 100-240V, 50/60Hz

Operating System : Windows

Lighting : LED

Resolution : 10 μm

Contact Now

M20M series Mini LED PCB pad measurement

Model M2020MS
Detection capacity Inspection items Mini LED PCB pad measurement
Inspection method Global calibration, pad global alignment
Optical system Camera 20MP
telecentric lens High resolution bi-telecentric lens
Resolution 4um (2.4um~5um optional)
Light Source RGB(Customizable)
Efficiency Four side detection 20s/pcs
Computer Configuration PC CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T
Monitor 22 "LED
Operating System Ubuntu
Detection performance PCB thickness 1~5mm
Maximum allowable component height 20mm upper, 30mm lower (special height can be customized)
Drive Linear motor + grating ruler
Movement speed Max :600mm/s
PCB fixture height 900+20mm(from floor to fixture surface)
Parameters PCB size Max: 300mmx250mm
Power supply AC220V/50Hz/2000W
Dimensions W1330xD1360xH1650mm (excluding warning light)
Weight 1600KG
Air Pressure Requirement ≥0.5Mpa
Environmental requirements Temperature:5~40℃, RH 25%~80%(no frost)
Upstream and downstream equipment communication Standard SMEMA interface / data communication with die bonder
RGB AOI Tester Automatic Inspection Machine Standard SMEMA interface

Pad measurement/Pad inspection /Solder paste printer/SPI/Die bonder/Pre-reflow AOI/Reflow oven/Post-reflow AOI /

Luminescence inspection/Colloid inspection/Laser Marker/Rework

Scientific platform design

The linear motor + linear encoder have high repeatability and positioning accuracy, and operate smoothly.

The high-precision motion control system design

avoids the loss of motion system data, ensures high-speed and stable motion, and effectively improves motion acceleration and deceleration.

The marble platform

effectively ensures high-precision, continuous and stable operation of the equipment.

RGB AOI Tester Automatic Inspection Machine Standard SMEMA interface

RGB AOI Tester Automatic Inspection Machine Standard SMEMA interface

RGB AOI Tester Automatic Inspection Machine Standard SMEMA interface
